RGGS: Compact Re-Grounded 3D Gaussian Splatting for Sparse-View Indoor Surface Reconstruction

Project Page

Jianan Zou1, Haihong Xiao2, Zhiyuan Luo1, Wenxiong Kang1, Ying He3.

1 South China University of Technology  |  2 Hefei University of Technology  |  3 Nanyang Technological University

RGGS performs geometry-aware fusion of real-view and generative Gaussian fields for sparse-view indoor surface reconstruction.

Code Video Results

Abstract

Sparse-view 3D Gaussian Splatting for indoor surface reconstruction is inherently under-constrained, often overfitting the observed views and producing incomplete or unstable geometry in occluded regions. Although existing generative models provide powerful priors for expanding viewpoint coverage, directly incorporating generated views as image-level supervision not only introduces metric drift due to inconsistencies with real observations, but also leads to redundant Gaussian primitives and increased storage overhead. In this paper, we present RGGS, a compact Re-Grounded Gaussian Splatting framework that fuses generative priors within the model space while maintaining geometric consistency. Specifically, we first construct two Gaussian fields independently: a base field optimized from real observations and a generative field learned from camera-controlled synthetic views. The two fields are subsequently aligned within a shared coordinate system through a Sim(3) transformation. We then formulate an entropic optimal transport (OT) objective under the Wasserstein-Bures metric to guide model-space fusion through joint transport of Gaussian means and anisotropic covariances. The resulting OT-guided fusion enables selective transport, distillation, and insertion of reliable generative geometry while suppressing inconsistent or noisy structures. Finally, we perform a real-view refinement stage that re-anchors the fused field to real observations, thereby improving geometric consistency and reconstruction accuracy. Extensive experiments on 17 scenes from Replica, ScanNet++, and MipNeRF360 demonstrate that RGGS consistently improves mesh reconstruction quality while achieving competitive novel view synthesis performance. Comprehensive ablation studies further validate the effectiveness of each component.

Key Contributions

  1. RGGS identifies metric drift as a core failure mode when generative priors are imposed directly as image-space supervision in sparse-view reconstruction.
  2. It introduces a compact re-grounded Gaussian splatting framework that aligns real-view and generative fields through Sim(3) and fuses them with entropic optimal transport under the Wasserstein-Bures metric.
  3. It performs OT-guided transport, distillation, and insertion of generative geometry, followed by real-view refinement to improve reconstruction quality while keeping the representation compact.

Overview

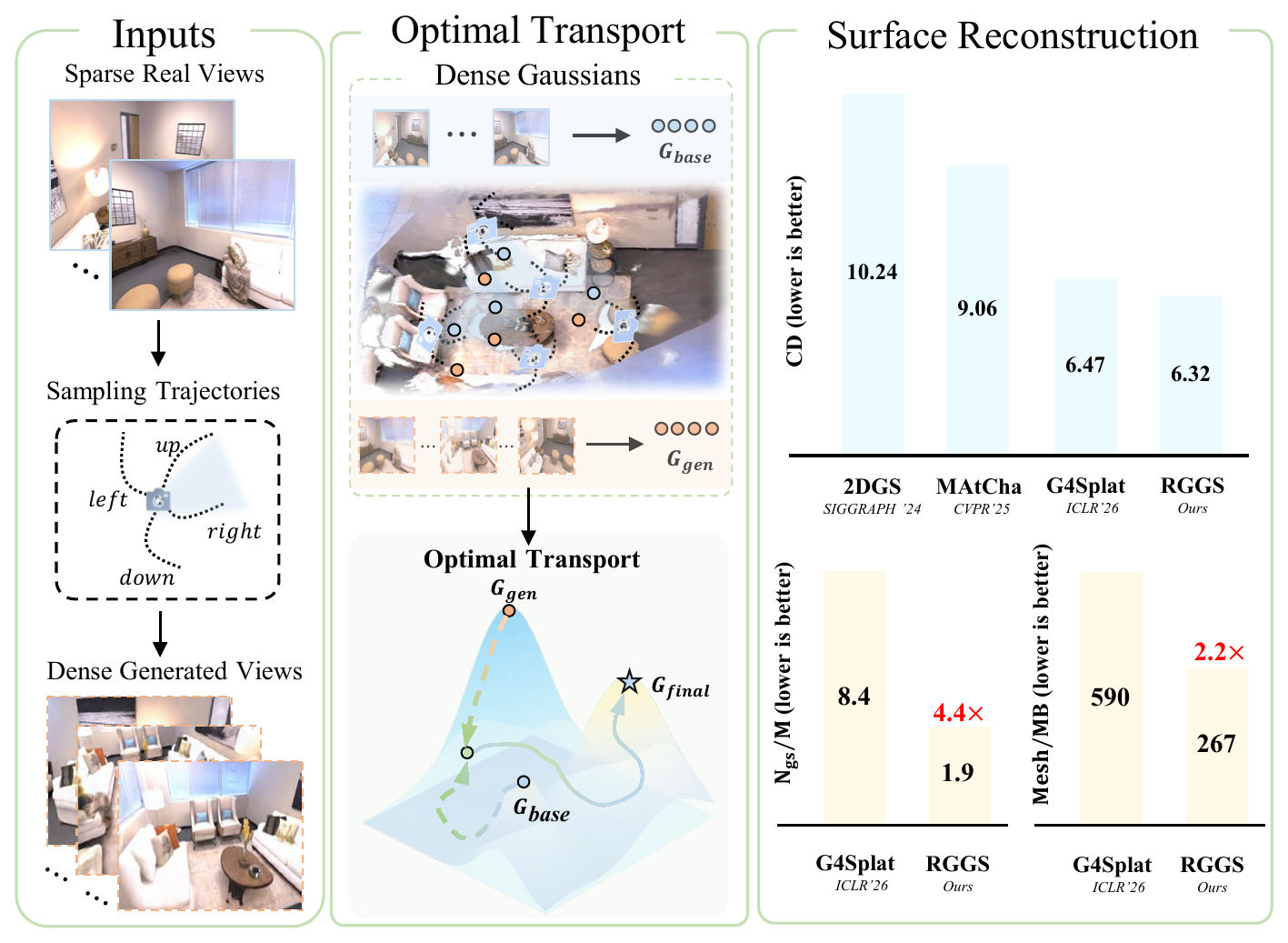

RGGS teaser figure.
Fig. 1. Re-ground Gaussians, recover geometry. RGGS fuses generative priors while preserving geometric consistency via optimal transport, enabling complete and faithful surface reconstruction from sparse indoor views. It achieves lower Chamfer distance with a more compact Gaussian and mesh representation.

Video Demo

Project demo video for RGGS qualitative mesh reconstruction comparison.

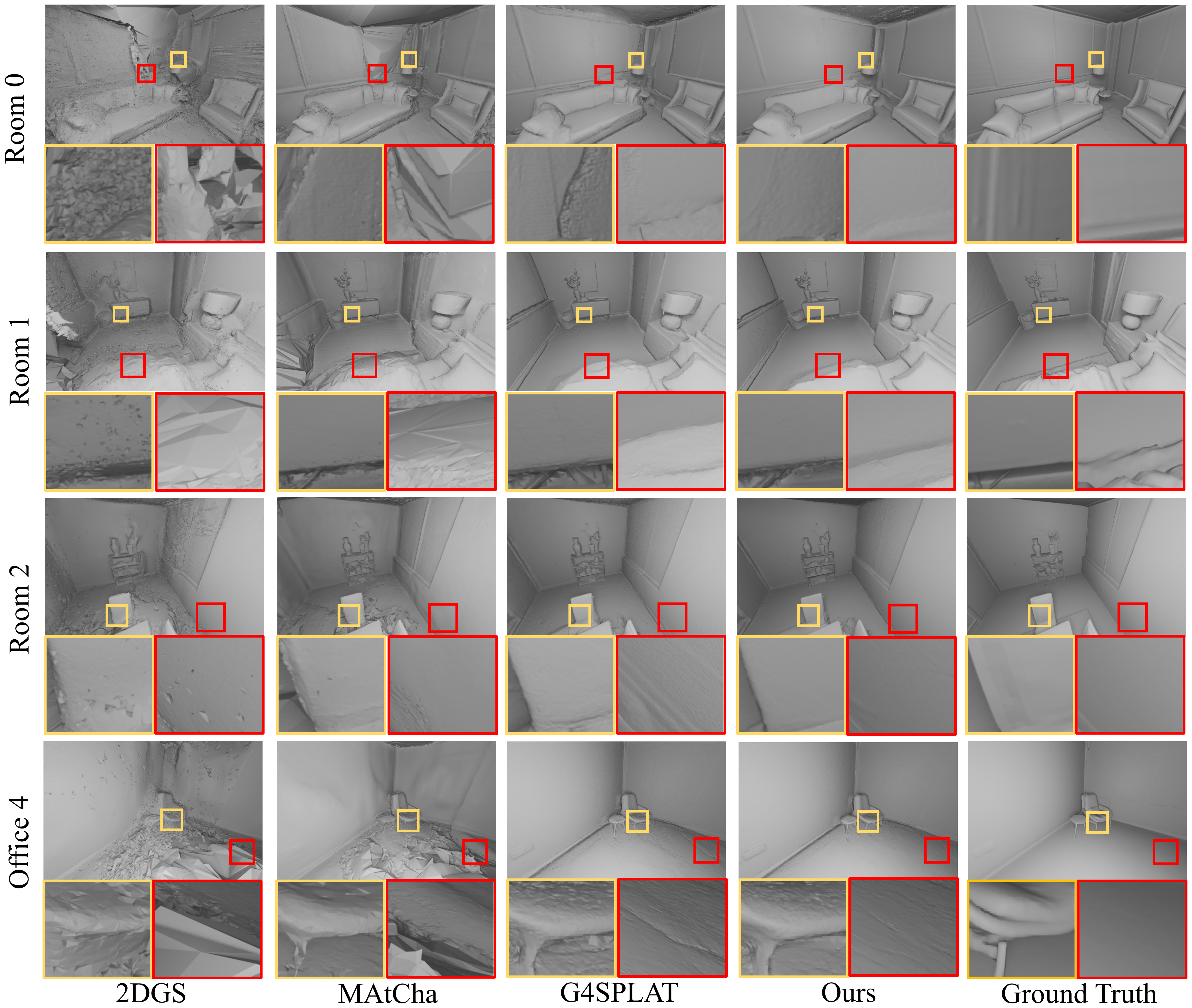

Mesh Reconstruction on Replica

Qualitative mesh reconstruction comparison on the Replica dataset.
Fig. 3. Qualitative comparison on the Replica dataset with 5 training views.

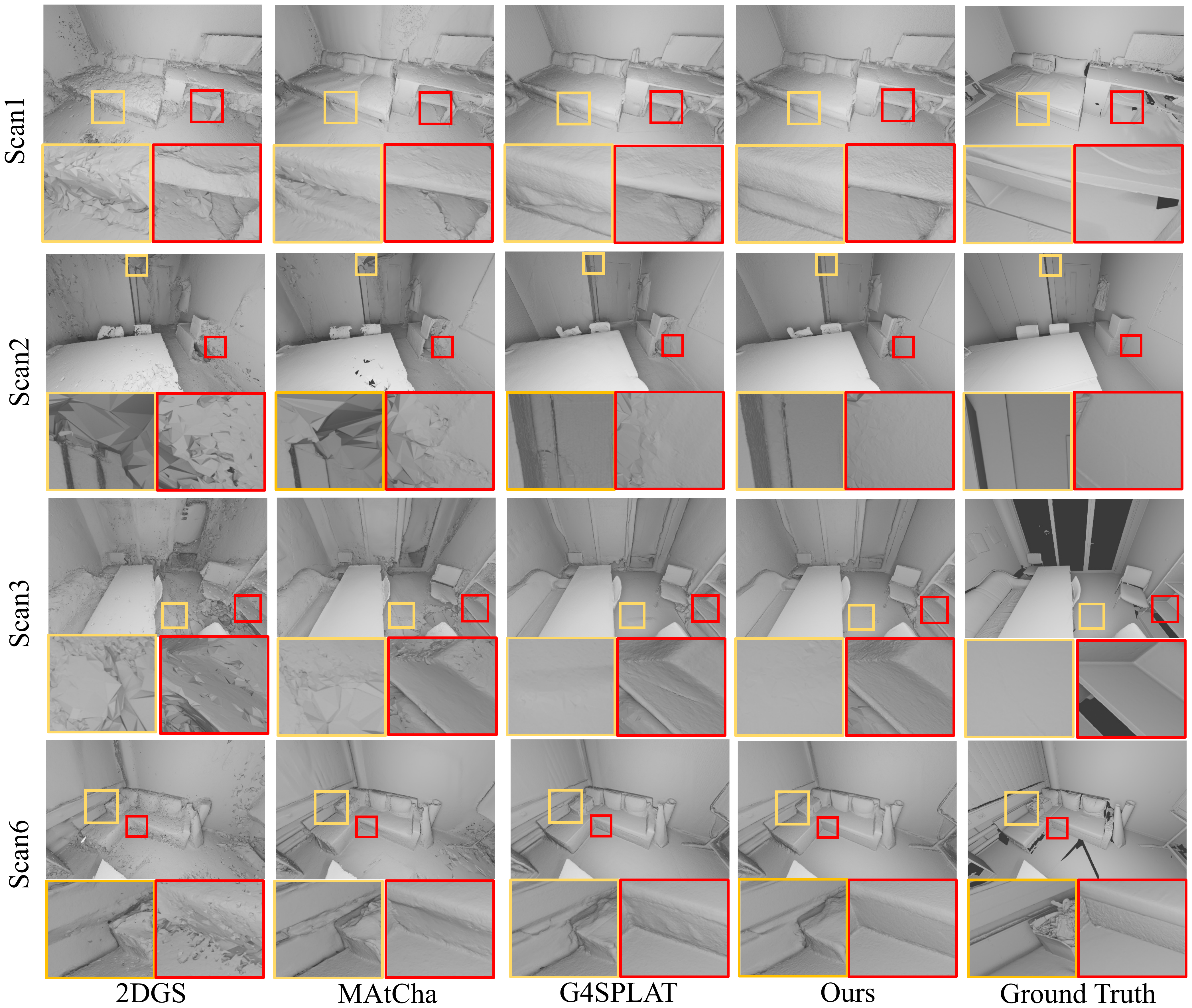

Mesh Reconstruction on ScanNet++

Qualitative mesh reconstruction comparison on the ScanNet++ dataset.
Fig. 4. Qualitative comparison on the ScanNet++ dataset with 5 training views.

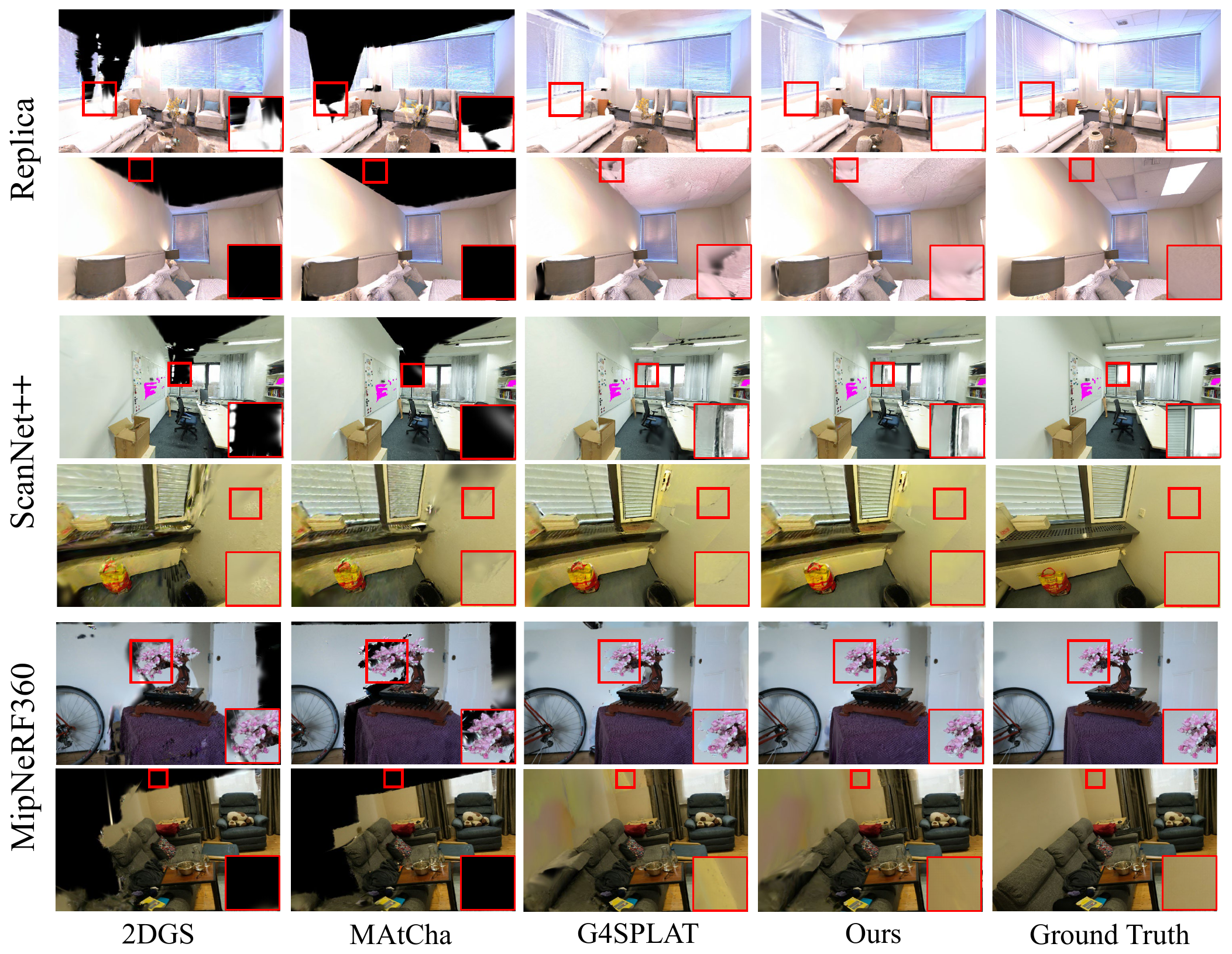

Novel View Synthesis

Qualitative novel view synthesis comparison.
Fig. 5. Qualitative comparison of novel view synthesis results on Replica, ScanNet++, and indoor MipNeRF360 scenes with 5 training views. Red boxes highlight representative local details.
